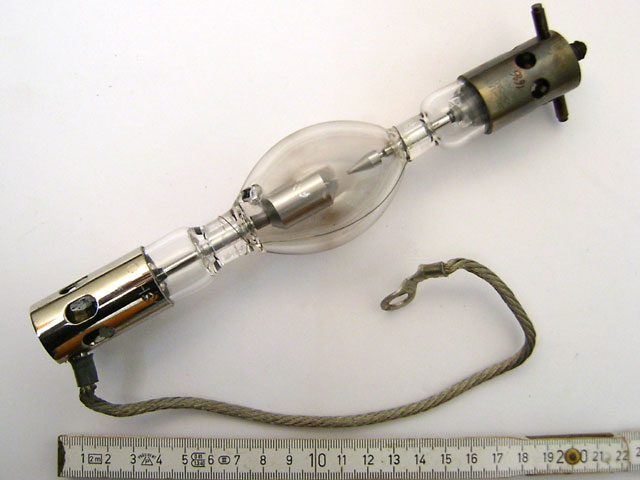

USHIO UXL 16 SC SCB
| USHIO UXL 16 SC SCB |
| Beschreibung: |
Xenon short arc lamps
Application Cinema
USHIO code UXL-16SC/SCB
Voltage (V) 22
Wattage (W) 1430
Rated current (A) 65
Current range (A) 45
Initial lumens (lm) 49000
Initial luminous intensity (cd) 5100
Operating position V?15? H?15?
Lifetime (hours) 1500
Lifetime Horizontal position (hours) 2000
Lifetime Vertical position (hours) 2000
Ozone free Yes
Dimension L1 (mm) 233
Dimension L2 (mm) 220
Dimension L3 (mm) 98.5
Dimension D1 (mm) 46.5
Dimension D2 (mm) 25
Dimension D3 (mm) 5
Electrode gap length (mm) 4 |
